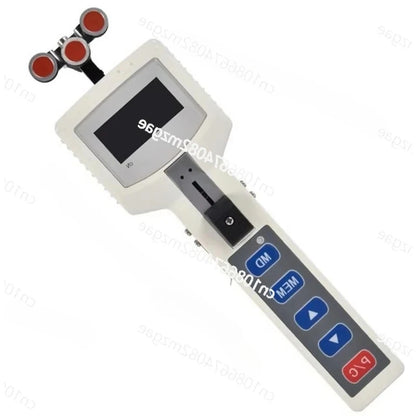

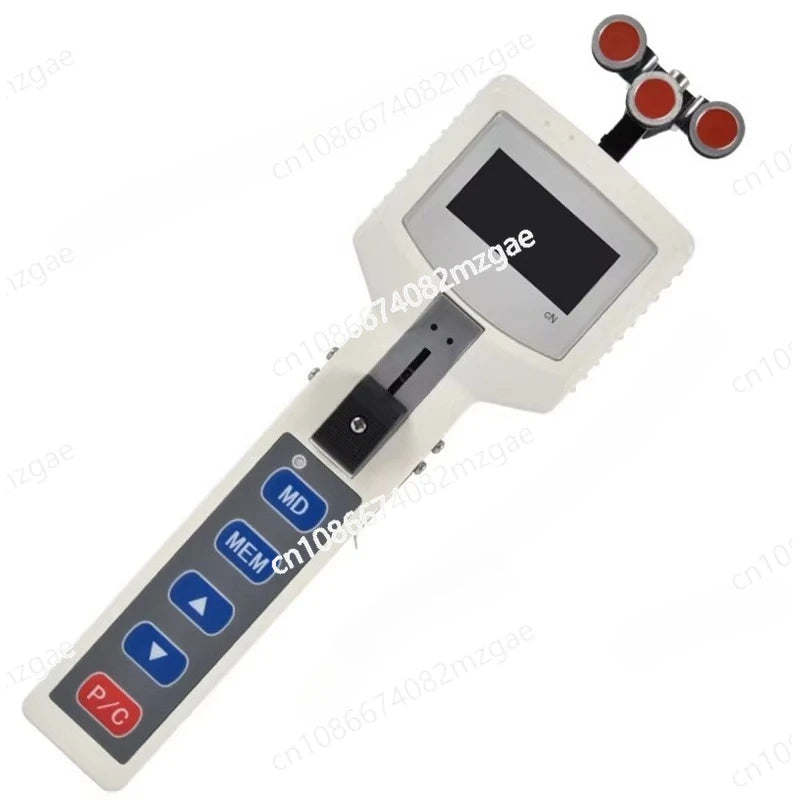

Digital Handheld Tension Meter for Wire Rope and Cable, Portable Dynamometer for Metal Cable Tension Testing Equipment
Digital Handheld Tension Meter for Wire Rope and Cable, Portable Dynamometer for Metal Cable Tension Testing Equipment
Couldn't load pickup availability
Hello dear, thank you very much for choosing our product. As the shipping cost from China to each country varies, please contact me before placing an order to confirm the accurate shipping cost to avoid any unnecessary misunderstandings. Thank you again! Wishing you a happy life! (Tip: If you are prompted to enter customized content when submitting an order, it is due to system requirements. But in reality, customized content does not affect your purchase. You can enter any content, please feel free to purchase!)
Handheld digital tension meter
instruction manual
I. Overview
1.1 Main purpose and scope of application
Handheld digital tensiometer is a portable electronic digital measuring instrument that can measure the tension of filamentous and linear materials. It is widely used in wire and cable, textile, chemical fiber, metal wire, carbon fiber and other industries. It can accurately measure tension and process data systematically.
1.2 Product features
1.2.1 Real-time, hold, peak three working modes can be switched arbitrarily.
1.2.2 cN,gf,OZ,Kgf,N,lbSix units can be set.
1.2.3 Accuracy is full scale2.5%.
1.2.4 Can be accurately measured10Tension of different materials.
1.2.5 beltUSBCommunication function.
1.2.6 With thickness adjustment function.
1.2.7 Convenient storage, can be stored41Group of data.
Second, product model specifications
|
Model |
200 |
500 |
1000 |
2000 |
2500 |
5000 |
10K |
|
Tension range |
4~200.0(cN) |
10~500.0(cN) |
20~1000(cN) |
40~2000(cN) |
50~2500(cN) |
100~5000(cN) |
2.00~10.00daN |
|
*Measuring head width (mm) |
65 |
65 |
65 |
65 |
116 |
116 |
116 |
|
**calibration material TextilePAmonofilament |
φ0.12mm |
φ0.12~0.20mm |
φ0.20~0.40mm |
φ0.40~0.70mm |
φ0.40~0.70mm |
φ0.60~1.20mm |
φ0.80~1.40mm |
|
Size (mm) |
270*118*55 |
||||||
|
Net weight (g) |
about640g |
||||||
|
power supply |
3.7Vlithium battery*2 |
||||||
Description:
Depending on the model, the width of the lead frame and the distance between the outside of the two guide wheels also vary.
Calibration materials are suitable for95%Measurement of tension.PA=Polyamide monofilament, if the diameter, hardness, shape, etc. of the material being tested are quite different from the company's calibration materials, it is recommended that customers provide5The meter-long material to be measured is calibrated.
International unit of tension:
1CN=1.02g=0.01N;
1daN=1.02kg=10N.
Third, the overall product structure

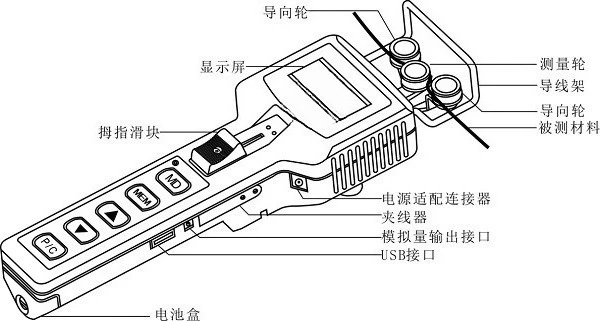

3.1 external structure
